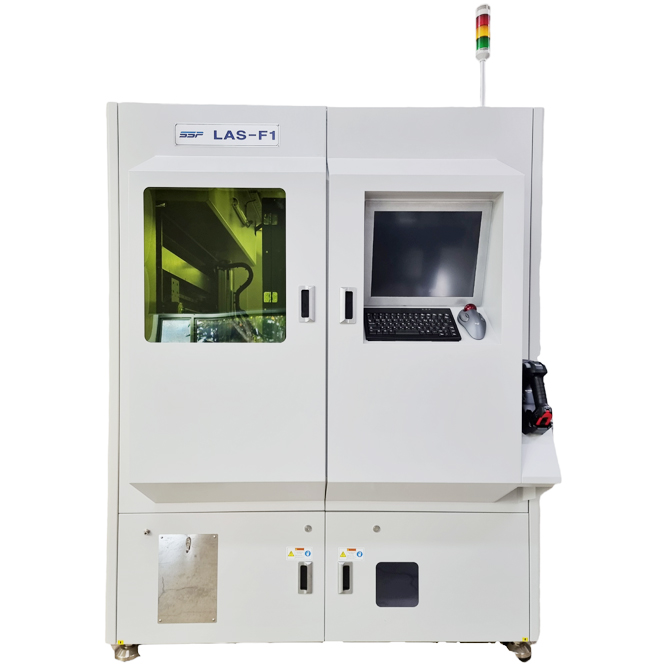

Laser Soldering System
- System Features
-
- System Performance
-
Laser Soldering equipment offers precise, localized laser heating with a quick process time under 10 seconds, it minimizes thermal stress and warpage risk while delivering high precision and energy efficiency for superior quality and productivity.
Lid Attach (Metal TIM Snap Cure)
- System Features
-
▶ Material
▷ Substrate : Max. 300mm
▷ Metal TIM : Reel type
▶ Machine
▷ Laser : 2 ~ 10Kw
▷ Optic : 10 X 10mm ~ 300 X 300mm (Depend on Material Size)
▷ Loading : Tray / Boat
▷ BLT Control : BLT < ±10um
▷ Dimension : 1750mm * 1680mm * 2450mm (W*L*H)
▶ Function
▷ Real Time Temp. Monitoring : IR Camera
▷ Laser Power Monitor, Compensation : Power Sensor
▷ Selective Soldering : Option
▷ Beam Profile & Size Func : Option
- System Performance
-
